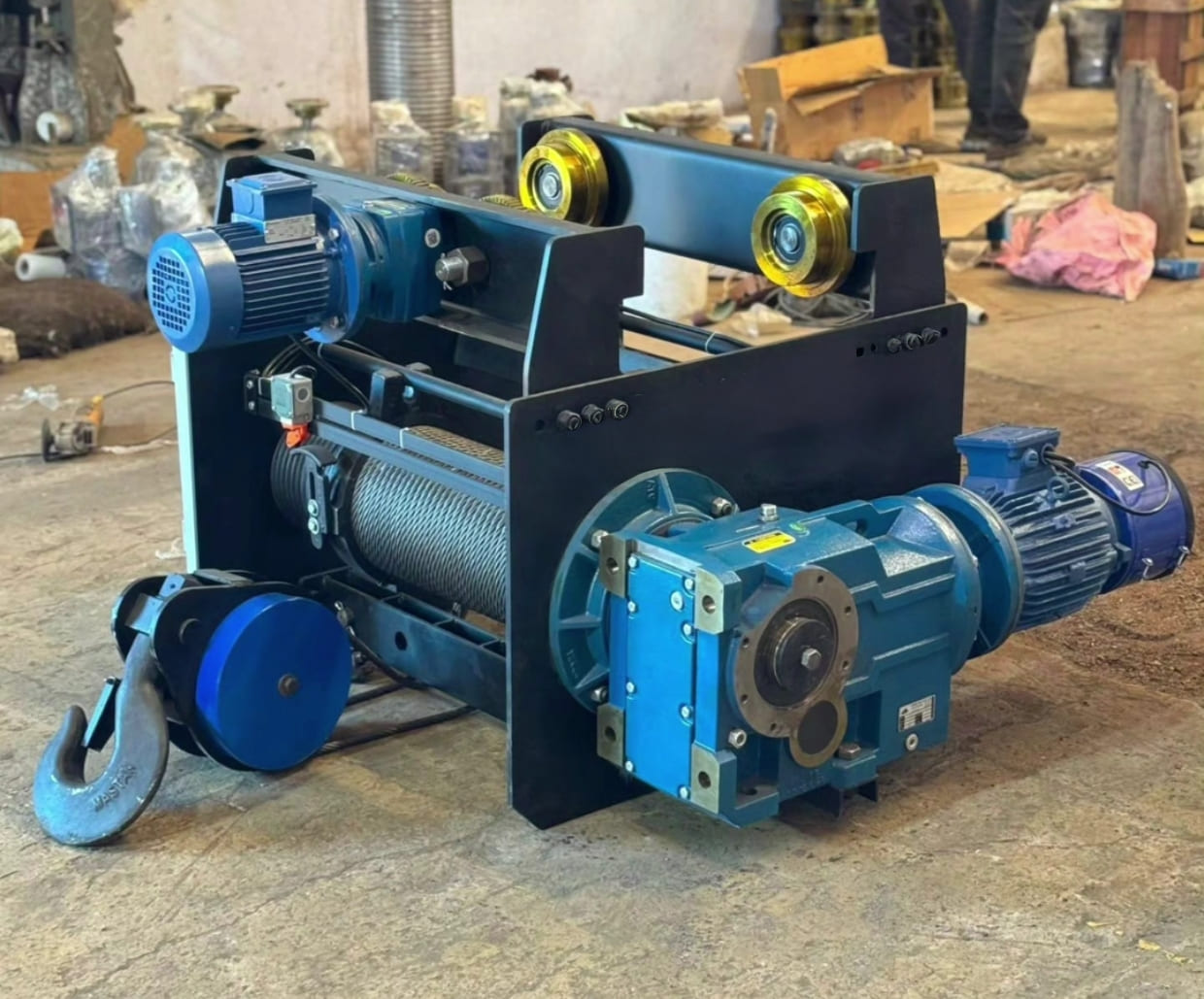

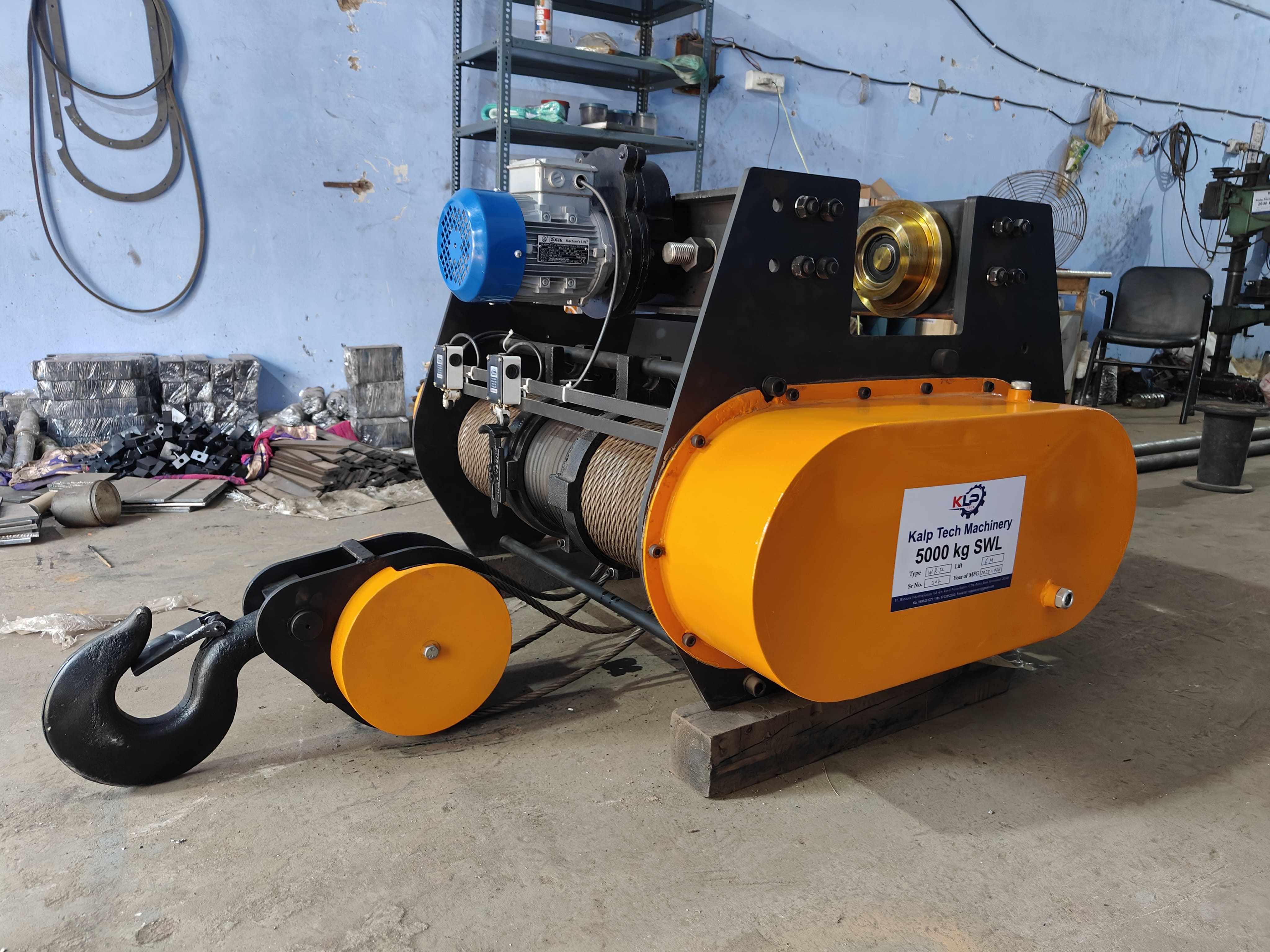

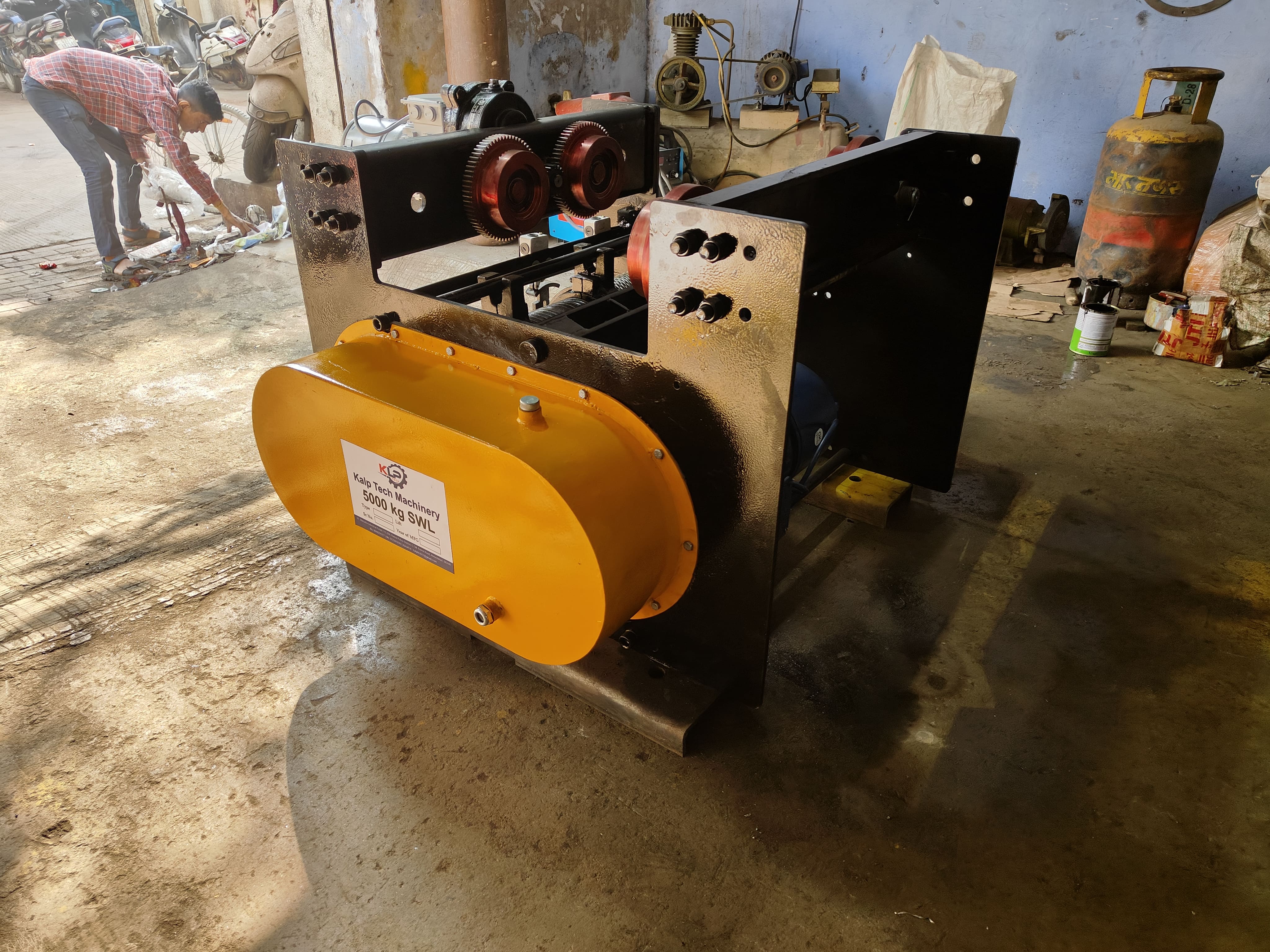

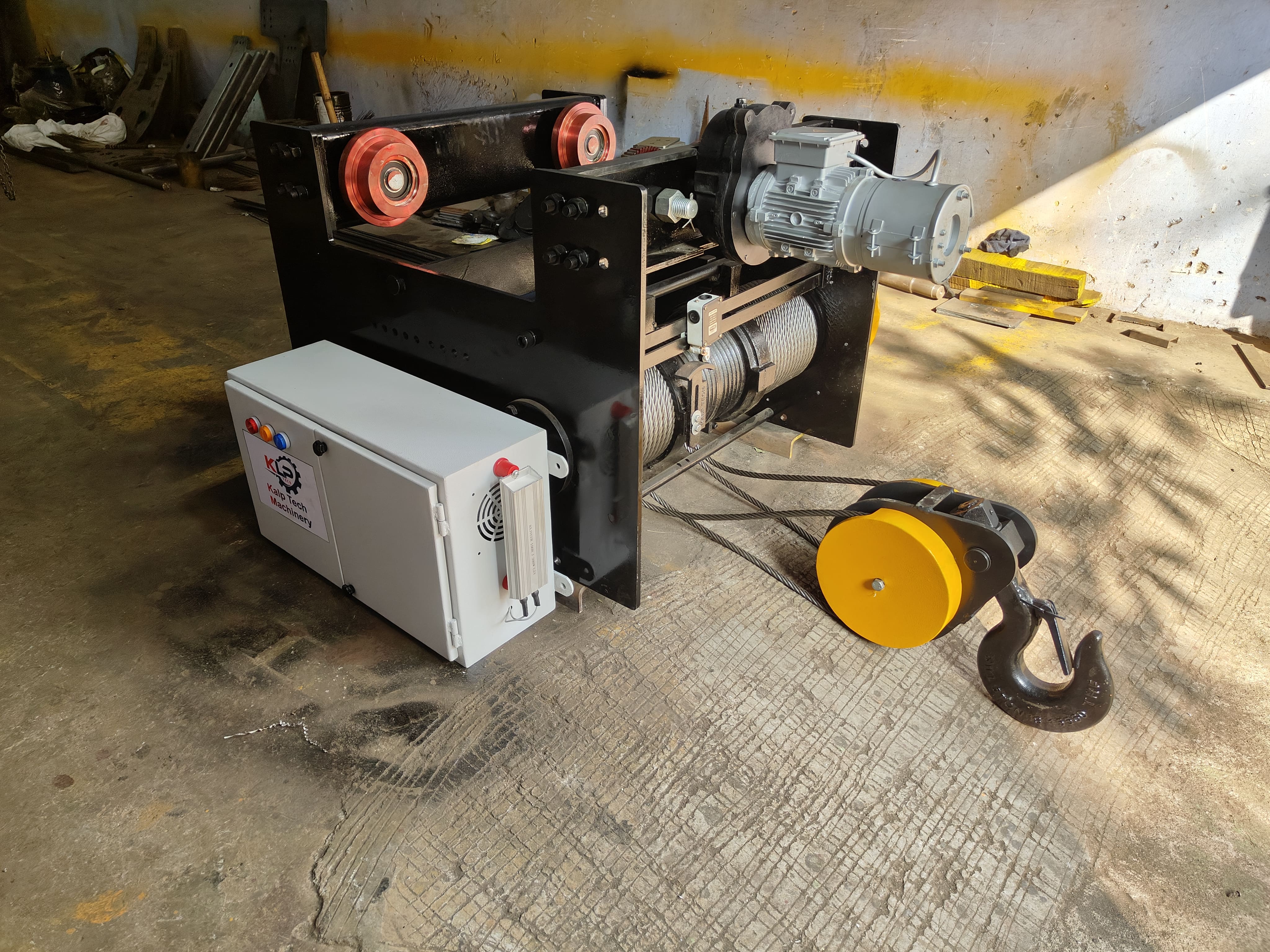

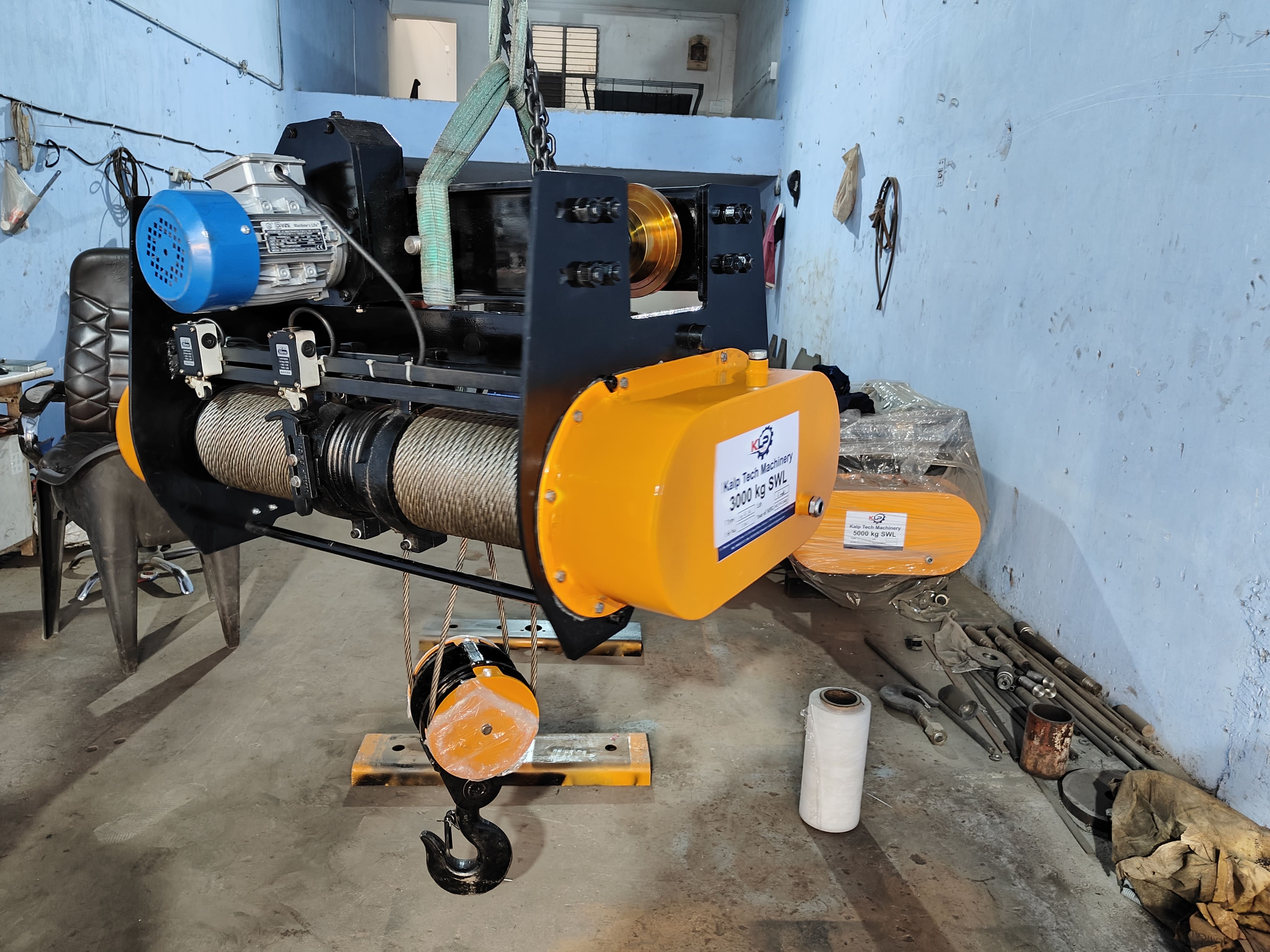

We are the Electric Wire Rope Hoists Manufacturer, Supplier, and
Exporter in Ahmedabad, India who design unparalleled hoists. Our
cranes come with flexible configurations which are made to suit the
client’s requirements. We provide a range of hoists that are suitable
for industrial and material handling uses. Our Electric Wire Rope
Hoists can efficiently bear a weight of 1 ton – 10 ton. Ideally, our hoists
come with conventional lifting heights are 6m, 9m, 12m, 16m, 18m
However, we also provide custom design solutions for higher lifting
capacities.

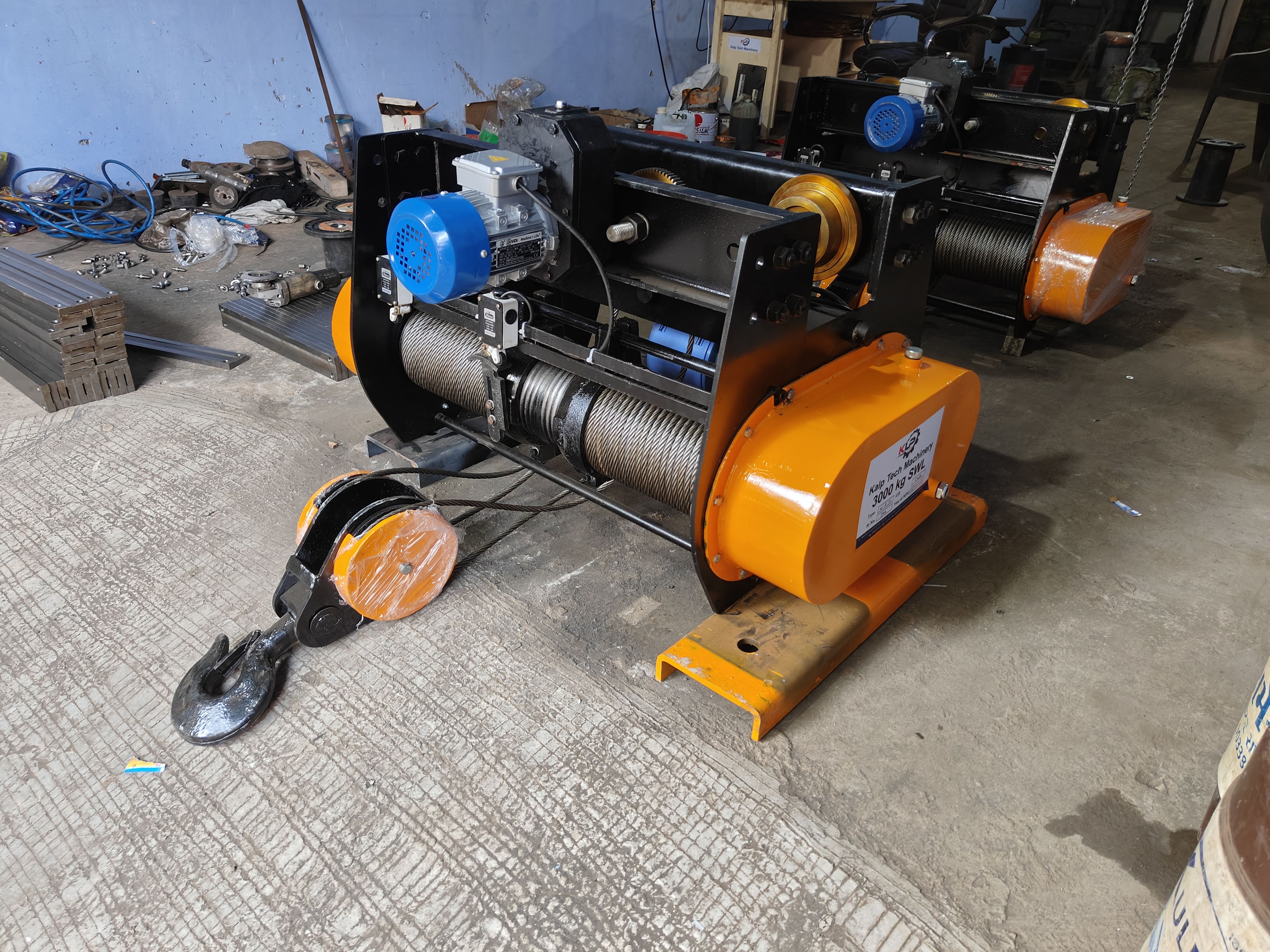

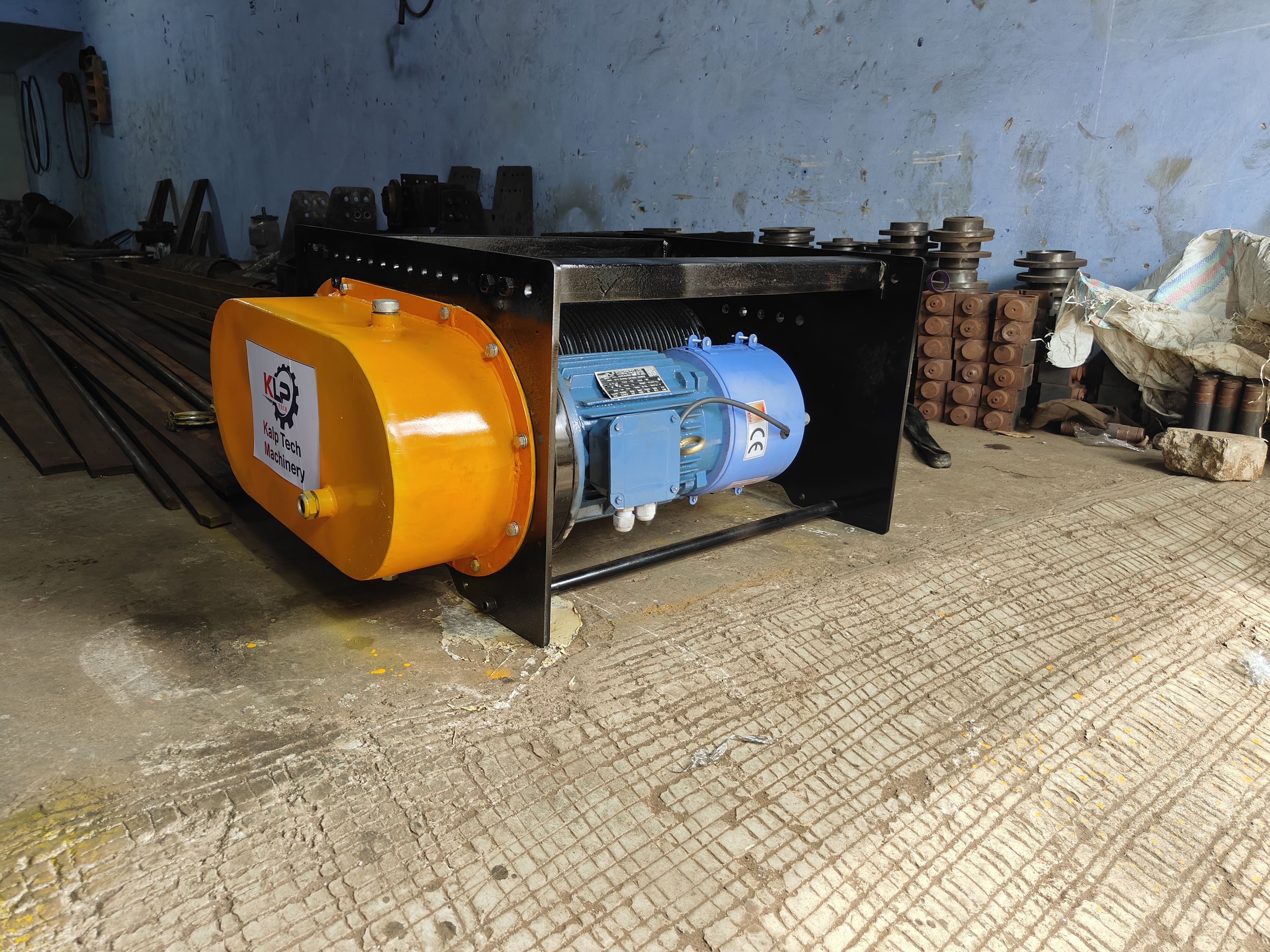

Base Mounted Hoist :
Base Mounted hoist is used in particular application. It is used for only Up &
Down motions and without Cross Travel Trolley. It has used for Goods Lift
operation, Hydro Pump Plant for Pump Maintenance etc.
Flame Proof Hoist :
The drive consists of flame proof motor, brakes, switches and push buttons. All electrical fittings are flame proof suitable for group I, IIA and IIB gases. Flame proof limit switches for extreme ends in horizontal and vertical movement.
Type of the Electric Wire Rope Hoists :
• Standard Electric Wire Rope Hoist
• Base Mounted Hoist
• Fix Suspension Electric Wire Rope Hoist
• Curved type Wire Rope Hoist
• Frame Proof Wire Rope Hoist
• Double Girder Wire Rope Hoist
Design Parts of the Electric Wire Rope Hoists and their applications:
Rope Drum : We design the Fabricated Rope drum Seamless Pipe and
further secure them with grooves to ensure that the wire seating of the
rope is perfect.
Gears & Pinions : Our gear and pinions are of the Helical type and are made
using steel alloys. The material is further hardened to ensure to staunch
design. The teeth cutting of the gears and pinions is done only after heat
treatment to ensure smooth functioning.
Bearings : The ball bearings used for the hoists are the heavy-duty ones and
are used for all the rotating parts.
Motors : The motors used are of the S4 type and have a speed of 150 starts/hour. It is 40% CDF and has a design of Squirrel Cage motors in accordance with the IS: 325 standards.
Rope guide: The rope guide is made using cast iron or mild steel. It is an
easy to use and easy to dismantle part which guides the rope through the
rope slides.
Hook : The hook is made using forged steel according to the IS: 3815
standards. If required, we can also provide hooks according to the IS: 15560
standards.
Brakes : The hoists and cross traverse are equipped with ACEM disc brakes.
Limit Switch : For over hoisting, we provide the normal switch with roller
design or rotary geared or counter weight gravity type switch. While for the
cross travel and long travel motion, we provide a two-way lever type
switch.
Trolley Adjustment : The trolley sizes are completely customizable
according to client needs. We also provide the option of choosing a higher
flange width.
